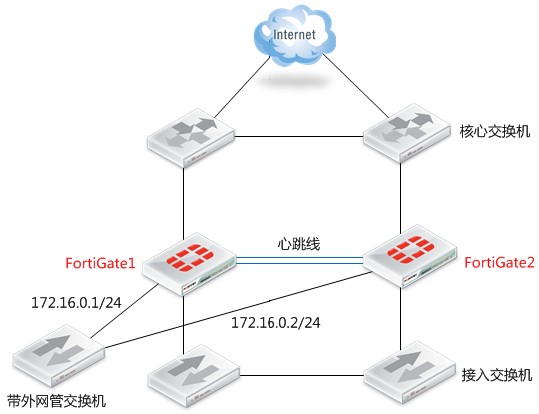

HA集群带外管理

FGT101E_Master_379 # config system ha

FGT101E_Master_379 (ha) # show

set group-name "FGT-101E"

set password ENC qFCIFxyvcDoECk2Ysw2kMkrRd8Mrn8loJ2pHGXvs59vKg6hXAAnLZsasIa/Icht5CTdtlUmA2yXAfJAfwa3EgR4JSnzpfbL451HgDGoAT7rzPB8YgTU7KHiQSMgu4ShEZI1YVFD0bYQ3RxM4gW/2gzmvJWNDuDNfjwQXkTnAMTeWYLlNwTbLowPjTJZRjZKgiqJ8vw==

set hbdev "ha2" 50 "ha1" 50

set session-pickup enable

set override disable

set monitor "port1" "wan1"

FGT101E_Slave_045 # config system ha

FGT101E_Slave_045 (ha) # show

config system ha

set group-name "FGT-101E"

set mode a-p

set password ENC ZR+owfGtfZ/JmdqLcPi2QI6q8oZHUQFq0iF9esgd8Dzx1wUO8InUODuF+NX0A2R7Rmuh0t4QcCuLX6zh8+1ScAOD5zKOts0dm/YKBeShMJYNkQZGCAWGdbnNG2CgBevJ3Izq4qnSZcEdMytJybEMqXjiaqGffuGnHamqZa18v/0vH/1SQx4J0sKm9D6fGa90b1ClmQ==

set hbdev "ha2" 50 "ha1" 50

set session-pickup enable

set override disable

set priority 120

set monitor "port1" "wan1"

end

配置完毕之后，直连接上ha1、ha2的心跳线，ha将会进行选举，选举结果如下：

FGT101E_Master_379 # diagnose sys ha status

HA information

Statistics

traffic.local = s:0 p:576052 b:153225536

traffic.total = s:0 p:575650 b:153242567

activity.fdb = c:0 q:0

Model=100, Mode=2 Group=0 Debug=0

nvcluster=1, ses_pickup=1, delay=0

[Debug_Zone HA information]

HA group member information: is_manage_master=1.

FG101E4Q17000379: Master, serialno_prio=0, usr_priority=150, hostname=FGT101E_Master_379

FG101E4Q17000045: Slave, serialno_prio=1, usr_priority=120, hostname=FGT101E_Slave_045

[Kernel HA information]

vcluster 1, state=work, master_ip=169.254.0.1, master_id=0:

FG101E4Q17000379: Master, ha_prio/o_ha_prio=0/0

FG101E4Q17000045: Slave, ha_prio/o_ha_prio=1/1

FGT101E_Master_379 #

这三个命令都可以看到HA的选举结果和HA状态：

# diagnose sys ha status

# get system ha status

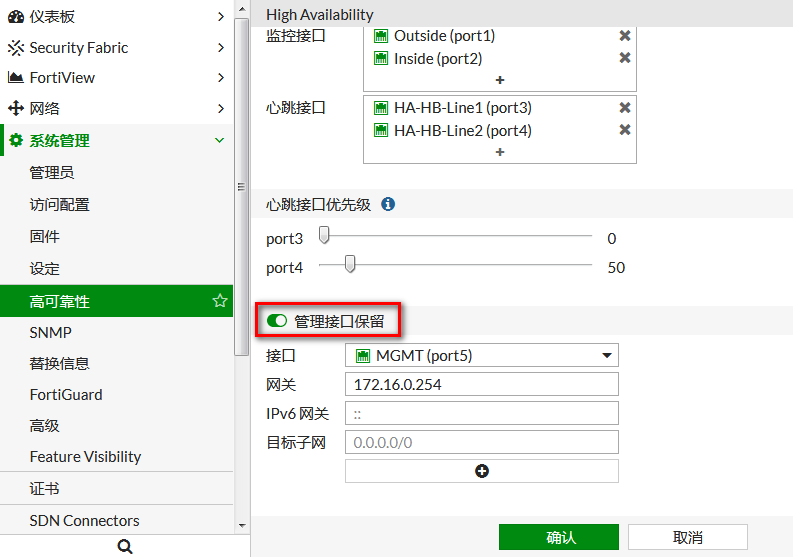

GUI查看HA的选举结果和状态：

2、配置基础LAN/WAN上网服务

此步骤为正常上网的基础配置，大概的步骤是配置接口IP、配置默认路由、配置策略即可实现防火墙的简单上网配置。不详细展开说明，仅仅提供配置截图和命令行。（所有配置都在主防火墙上完成，备防火墙此时不可以登陆）

配置接口IP：

配置默认路由：

配置上网策略：

配置上网的命令行：

config system interface

edit "port1"

set ip 192.168.10.1 255.255.255.0

set allowaccess ping https ssh http fgfm

set alias "LAN"

end

edit "wan1"

set ip 202.100.1.21 255.255.255.0

set allowaccess ping https ssh http fgfm

set alias "WAN1_Unicom"

end

config router static

edit 1

set gateway 202.100.1.192

set distance 1

set device "wan1"

end

config firewall policy

edit 1

set name "TO_Internet"

set srcintf "port1"

set dstintf "wan1"

set srcaddr "all"

set dstaddr "all"

set action accept

set schedule "always"

set service "ALL"

set utm-status enable

set logtraffic all

set av-profile "default"

set application-list "default"

set profile-protocol-options "default"

set ssl-ssh-profile "certificate-inspection"

set nat enable

end

首先需要开启VDOM特性（主设备上配置，会自动同步到备机）：

FGT101E_Master_379 # config system global

FGT101E_Master_379 (global) # set vdom-admin enable

FGT101E_Master_379 (global) # end

You will be logged out for the operation to take effect

Do you want to continue? (y/n)y

Auto backup config ...

exit

FGT101E_Master_379 login:

FGT101E_Master_379 login: admin

Password: ********

Welcome !

FGT101E_Master_379 #

创建新的MGMT独立管理VDOM（主设备上配置，会自动同步到备机）：

GUI创建MGMT VDOM：

命令行创建MGMT VDOM：

FGT101E_Master_379 # config vdom

FGT101E_Master_379 (vdom) # edit MGMT

FGT101E_Master_379 (MGMt) # end

FGT101E_Master_379 #

将MGMT独立管理VDOM修改为管理VDOM（只能命令行修改）

FGT101E_Master_379 (vdom) # end

FGT101E_Master_379 # config global

FGT101E_Master_379 (global) # config system global

FGT101E_Master_379 (global) # set management-vdom

<string> please input string value

MGMT vdom

root vdom

FGT101E_Master_379 (global) # set management-vdom MGMT \\ 设置MGMT为管理VDOM，也就是说fortiguard、dns、ntp...等等主动更新，都是从MGMT这个VDOM发起，是一个管理的VDOM

FGT101E_Master_379 (global) # end

HA里面指定MGMT VDOM为独立管理VDOM

FGT101E_Master_379 # config global

FGT101E_Master_379 (global) # config system ha

FGT101E_Master_379 (ha) # set standalone-mgmt-vdom enable \\ （此配置HA的主备同步，在主设备配置会自动同步到备设备上），HA里面也要做相应的独立管理VDOM开启

FGT101E_Master_379 (ha) # end

FGT101E_Master_379 (global) # config system ha

FGT101E_Master_379 (ha) # show

config system ha

set group-id 30

set group-name "FGT-101E"

set mode a-p

set password ENC 6NEF2ju60YG/UTJdCcPb/zuCvcqAvBz6nSfBihvkRE0ORog3e8XvP8RU1RLEYaFoBm07Z5aEAS0QitmhXuCJK+V1FYkTk9YcVOazbmJI4+H61xkzNhYM35Pf3ecCfkkY//UPUG/kfhZJTROkuSoWkqKDrvKIgnWwFquGq+uz/tTqFAtYu4O4/ECh3oQuKPSGHLThAg==

set hbdev "ha2" 50 "ha1" 50

set session-pickup enable

set standalone-mgmt-vdom enable

set override disable

set priority 150

set monitor "port1" "wan1" "wan2"

end

FGT101E_Master_379 (ha) # end

FGT101E_Master_379 (global) # end

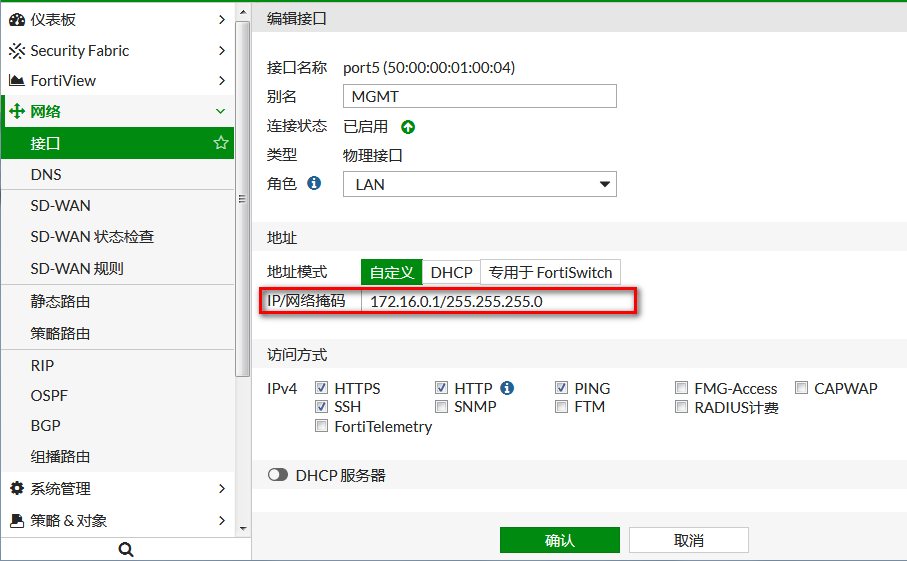

将mgmt接口加入到MGMT VDOM中，并配置上管理IP和默认路由：

先配置主防火墙的mgmt接口：

命令行配置过程：

配置mgmt加入到VDOM-MGMT以及配置管理IP地址：

FGT101E_Master_379 # config global

FGT101E_Master_379 (global) # config system interface

FGT101E_Master_379 (interface) # edit mgmt

FGT101E_Master_379 (mgmt) # set vdom MGMT

FGT101E_Master_379 (mgmt) # set ip 192.168.91.21/24

FGT101E_Master_379 (mgmt) # set alias "HA_Dedicated_MGMT"

FGT101E_Master_379 (mgmt) # show

config system interface

edit "mgmt"

set vdom "MGMT"

set ip 192.168.91.21 255.255.255.0

set allowaccess ping https ssh http

set type physical

set alias "HA_Dedicated_MGMT"

set role lan

set snmp-index 2

end

FGT101E_Master_379 (mgmt) # end

FGT101E_Master_379 (global) # end

FGT101E_Master_379 #

配置默认路由：

FGT101E_Master_379 # config vdom

FGT101E_Master_379 (vdom) # edit MGMT

current vf=MGMT:1

FGT101E_Master_379 (MGMT) # config router static

FGT101E_Master_379 (static) #

FGT101E_Master_379 (static) # edit 0

new entry '0' added

FGT101E_Master_379 (0) # set gateway 192.168.91.254

FGT101E_Master_379 (0) # set device mgmt

FGT101E_Master_379 (0) # show

config router static

edit 1

set gateway 192.168.91.254

set device "mgmt"

end

FGT101E_Master_379 (0) # end

FGT101E_Master_379 (MGMT) #

FGT101E_Master_379 (MGMT) # execute ping 192.168.91.254

PING 192.168.91.254 (192.168.91.254): 56 data bytes

64 bytes from 192.168.91.254: icmp_seq=0 ttl=255 time=0.2 ms

64 bytes from 192.168.91.254: icmp_seq=1 ttl=255 time=0.1 ms

64 bytes from 192.168.91.254: icmp_seq=2 ttl=255 time=0.1 ms

64 bytes from 192.168.91.254: icmp_seq=3 ttl=255 time=0.1 ms

64 bytes from 192.168.91.254: icmp_seq=4 ttl=255 time=0.1 ms

--- 192.168.91.254 ping statistics ---

5 packets transmitted, 5 packets received, 0% packet loss

round-trip min/avg/max = 0.1/0.1/0.2 ms

FGT101E_Master_379 (MGMT) #

FGT101E_Master_379 (MGMT) # end

FGT101E_Master_379 #

主机配置完毕。

这个时候可以通过GUI登录到备机，查看备机的GUI配置：

此时备机是无法WEB/SSH登陆的需要通过主机的命令（或者Console线）连到备机的命令行界面：

FGT101E_Master_379 # config global

FGT101E_Master_379 (global) # execute ha manage

<id> please input peer box index.

<1> Subsidary unit FG101E4Q17000045

FGT101E_Master_379 (global) # execute ha manage 1 \\ 从主机登陆到备机的命令行

FGT101E_Slave_045 login: admin

Password: ********

Welcome !

FGT101E_Slave_045 $

备防火墙那边会自动同步VDOM和mgmt加入到MGMT的配置（如果配置同步不正常，可以将备机重启，并等待配置同步完成，再操作），而独立管理MGMT-VDOM内部的配置是不会同步的，因此只需要修改备防火墙的mgmt的接口IP和路由即可：

FGT101E_Slave_045 $ config vdom

FGT101E_Slave_045 (vdom) $ edit MGMT

current vf=MGMT:1

FGT101E_Slave_045 (MGMT) $ config system interface

FGT101E_Slave_045 (interface) $ edit mgmt

FGT101E_Slave_045 (mgmt) $ set ip 192.168.91.22/24

FGT101E_Slave_045 (mgmt) $ set allowaccess https http ping ssh

FGT101E_Slave_045 (mgmt) $ set alias "HA_Dedicated_MGMT"

FGT101E_Slave_045 (mgmt) $ show

config system interface

edit "mgmt"

set vdom "MGMT"

set ip 192.168.91.22 255.255.255.0

set allowaccess ping https ssh http

set type physical

set alias "HA_Dedicated_MGMT"

set role lan

set snmp-index 2

end

FGT101E_Slave_045 (mgmt) $ end

FGT101E_Slave_045 (MGMT) $ config router static

FGT101E_Slave_045 (static) $ edit 0

new entry '0' added

FGT101E_Slave_045 (0) $ set device mgmt

FGT101E_Slave_045 (0) $ set gateway 192.168.91.254

FGT101E_Slave_045 (0) $ end

FGT101E_Slave_045 (MGMT) $ execute ping 192.168.91.254

PING 192.168.91.254 (192.168.91.254): 56 data bytes

64 bytes from 192.168.91.254: icmp_seq=0 ttl=255 time=0.2 ms

64 bytes from 192.168.91.254: icmp_seq=1 ttl=255 time=0.1 ms

64 bytes from 192.168.91.254: icmp_seq=2 ttl=255 time=0.1 ms

64 bytes from 192.168.91.254: icmp_seq=3 ttl=255 time=0.1 ms

64 bytes from 192.168.91.254: icmp_seq=4 ttl=255 time=0.1 ms

--- 192.168.91.254 ping statistics ---

5 packets transmitted, 5 packets received, 0% packet loss

round-trip min/avg/max = 0.1/0.1/0.2 ms

FGT101E_Slave_045 (MGMT) $ end

FGT101E_Slave_045 $

FGT101E_Slave_045 $ exit

Auto backup config ...

FGT101E_Master_379 (global) #

备机也配置完毕。

这个时候可以通过GUI登录到备机，查看备机的GUI配置：

这时候可以通过192.168.91.21和192.168.91.22分别管理到主防火墙和备防火墙了。

HA独立管理VDOM效果验证：

通过独立VDOM的mgmt管理IP：192.168.91.21 管理主防火墙。

通过独立VDOM的mgmt管理IP：192.168.91.22 管理备防火墙。

4、配置防火墙的SYSLOG、SNMP和FMG

关于发送syslog日志：

配置SYSLOG等本机发出的网管配置：

默认情况下MGMT和root会继承global的syslog日志配置：

对应命令行：

FGT101E_Master_379 # config global

FGT101E_Master_379 (global) #

FGT101E_Master_379 (global) # config log syslogd setting

FGT101E_Master_379 (setting) #

FGT101E_Master_379 (setting) # show

config log syslogd setting

set status enable

set server "192.168.91.115"

end

FGT101E_Master_379 (setting) # end

FGT101E_Master_379 (global) # end

FGT101E_Master_379 #

主/备防火墙的日志都会通过独立管理VDOM的mgmt 192.168.91.21和192.168.91.22将syslog日志发送出去：

FGT101E_Master_379 (MGMT) # diagnose sniffer packet any "port 514" 4

interfaces=[any]

filters=[port 514]

0.742199 mgmt out 192.168.91.21.18954 -> 192.168.91.115.514: udp 571

0.742290 mgmt out 192.168.91.21.18954 -> 192.168.91.115.514: udp 741

7.326997 mgmt out 192.168.91.21.18954 -> 192.168.91.115.514: udp 566

9.896881 mgmt out 192.168.91.21.18954 -> 192.168.91.115.514: udp 435

11.968832 mgmt out 192.168.91.21.18954 -> 192.168.91.115.514: udp 736

FGT101E_Slave_045 (MGMT) # diagnose sniffer packet any "port 514" 4

interfaces=[any]

filters=[port 514]

2.756374 mgmt out 192.168.91.22.11695 -> 192.168.91.115.514: udp 319

5.996477 mgmt out 192.168.91.22.11695 -> 192.168.91.115.514: udp 476

10.768830 mgmt out 192.168.91.22.11695 -> 192.168.91.115.514: udp 455

15.270956 mgmt out 192.168.91.22.11695 -> 192.168.91.115.514: udp 476

关于SNMP的配置：

VDOM-MGMT的mgmt接口下开启SNMP协议，主设备和备设备都要开，VDOM-MGMT里面的配置不同步：

然后再全局开启SNMP协议（全局的配置HA是同步的）：

对应命令行：

FGT101E_Master_379 # config vdom

FGT101E_Master_379 (vdom) # edit MGMT

current vf=MGMT:3

FGT101E_Master_379 (MGMT) # config system interface

FGT101E_Master_379 (interface) # edit mgmt

FGT101E_Master_379 (mgmt) # show

config system interface

edit "mgmt"

set vdom "MGMT"

set ip 192.168.91.21 255.255.255.0

set allowaccess ping https ssh snmp http fgfm

set type physical

set alias "HA_Dedicated_MGMT"

set role lan

set snmp-index 2

end

FGT101E_Master_379 (mgmt) # end

FGT101E_Master_379 (MGMT) # end

FGT101E_Master_379 # config global

FGT101E_Master_379 (global) # config system snmp community

FGT101E_Master_379 (community) # show

config system snmp community

edit 1

set name "public"

config hosts

edit 1

set ip 192.168.10.125 255.255.255.255

edit 2

end

FGT101E_Master_379 (community) # end

FGT101E_Master_379 (global) # config system snmp sysinfo

FGT101E_Master_379 (sysinfo) # show

config system snmp sysinfo

set status enable

set description "FGT101E"

set contact-info "support_cn@fortinet.com"

set location "BEIJING"

end

FGT101E_Master_379 (sysinfo) # end

FGT101E_Master_379 (global) # end

FGT101E_Master_379 #

FGT101E_Master_379 (MGMT) # dia sniff pa any "port 161 or port 162 and host 192.168.91.115" 4

interfaces=[any]

filters=[port 161 or port 162 and host 192.168.91.115]

13.000278 mgmt in 192.168.91.115.4783 -> 192.168.91.21.161: udp 40

13.000937 mgmt out 192.168.91.21.161 -> 192.168.91.115.4783: udp 45

FGT101E_Slave_045 (MGMT) # dia sniff pa any "port 161 or port 162 and host 192.168.91.115" 4

interfaces=[any]

filters=[port 161 or port 162 and host 192.168.91.115]

7.749979 mgmt in 192.168.91.115.1257 -> 192.168.91.22.161: udp 40

7.750645 mgmt out 192.168.91.22.161 -> 192.168.91.115.1257: udp 44

HA切换的时候发送snmp trap：

关于FortiManger的管理（只能通过业务接口添加）：

防火墙主动去找FMG，实际数据也还是会通过root里面的业务接口去连接FMG，并不走独立管理VDOM里面的mgmt：

对应命令行：

FGT101E_Master_379 # config vdom

FGT101E_Master_379 (vdom) # edit root

current vf=root:0

FGT101E_Master_379 (root) # config system interface

FGT101E_Master_379 (interface) # edit port1

FGT101E_Master_379 (port1) # show

config system interface

edit "port1"

set allowaccess ping https ssh snmp http fgfm

end

FGT101E_Master_379 (port1) # end

FGT101E_Master_379 (root) # end

FGT101E_Master_379 #

FGT101E_Master_379 # config global

FGT101E_Master_379 (global) # config system central-management

FGT101E_Master_379 (central-management) # show

config system central-management

set type fortimanager

set fmg "192.168.147.250"

end

FGT101E_Master_379 (central-management) # end

FGT101E_Master_379 (global) # end

FGT101E_Master_379 #

或者FMG主动添加FGT都可以：

如果是FGT主动去注册FMG，则FMG会有未注册的设备提示：

只需要将设备添加到FMG的设备管理中即可：

关于FMG还是建议使用业务接口进行管理，不能使用独立管理口/独立管理VDOM进行管理。对于FMG来说HA-Cluster就是一台设备，因此需要一个固定的IP地址来网管FGT会比较合适，可以有效的避免HA发生切换的时候，FGT和FMG的tunnel中断的情况。

此时所有的SNMP/Radius/SYSLOG/DNS/FORTGUARD都是通过MGMT这个VDOM进行更新的，完全独立于root业务VDOM，彻底的管理是管理，业务是业务。这是HA独立管理的终极解决方案。

最终总结注意事项：

FortiManger管理HA-Cluster的时候只能通过业务接口进行管理，不能通过独立管理口或者独立管理VDOM进行管理。
